All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.
Note: Your vehicle must be equipped with the factory/OEM roof rails in order to use this rack kit.
This rack kit can be removed leaving your vehicle’s roof and roof rails in their original condition.
Factory Rail Rack Kits are designed as a "light duty" cargo solution. Please refer to your vehicles owner manual for manufacturers recommended load rating and do not exceed these limits.
For optimal load carrying capacity, we recommend that there is no cargo overhang (excludes sports gear) and all weight is distributed evenly across the rack.
Factory Rail Rack Kits are not suited for extreme off-road conditions and therefore you should consider a different Front Runner mounting solution if this is your intended purpose.
Please contact us for advice on specific mounting solutions for your vehicle and use.
2x GOFR001 - Rail Foot Base (Pair)
2x GOFR014 - Flush Rail Outer Grips / No. 6
2x GOFR035 - Flush Rail Inner Grips / F
2x RRAC904 - Plastic Spacer for Rail Foot Base / 10mm (Pair)
1x RRSTA07 - SLII Tray - 1165mm(W)X1358mm(L)
1x WDST011 - Wind Deflector 20mm Lip Extra Narrow Pair /1165mm
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 24.79kg (54.65lbs)

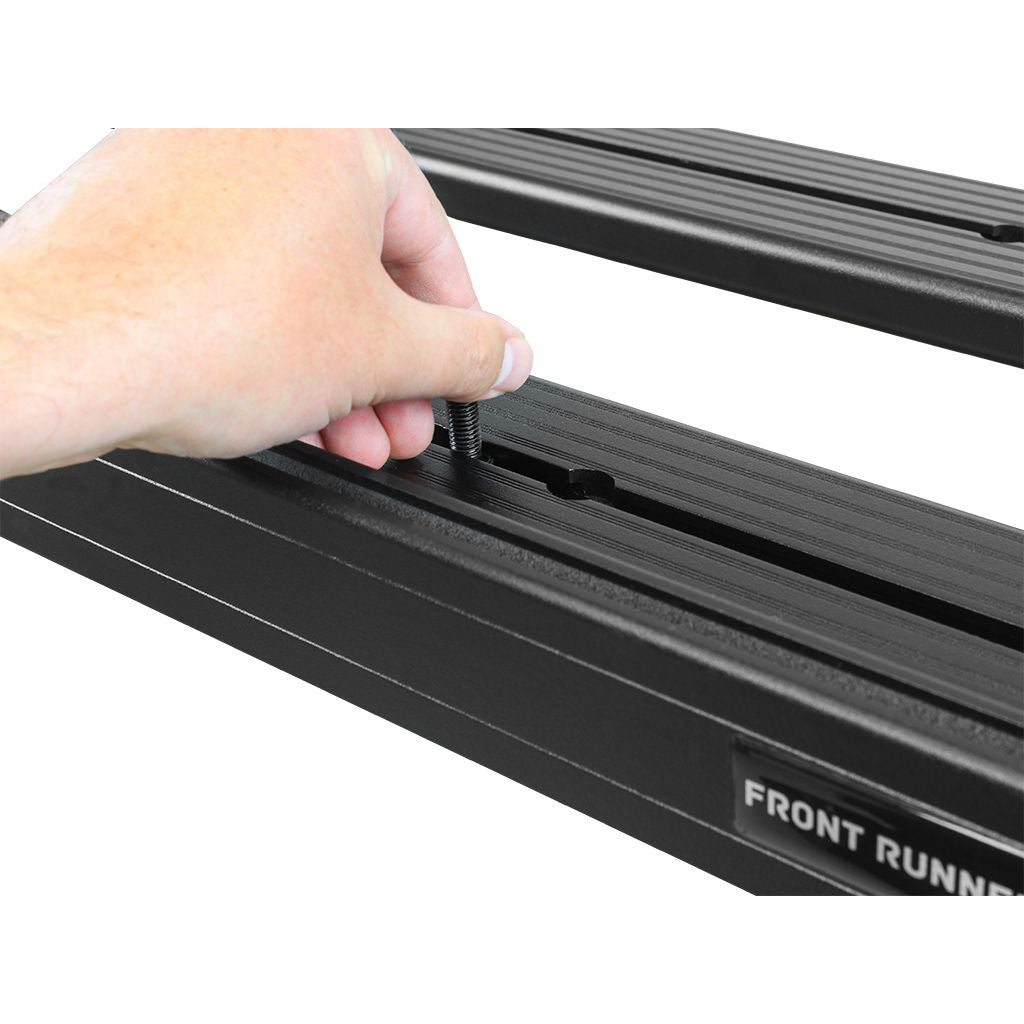

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Width: 450mm (18")
Length: 1615mm (64")
Height: 140mm (6")
Weight: 24.52kg (54lbs)
